Description

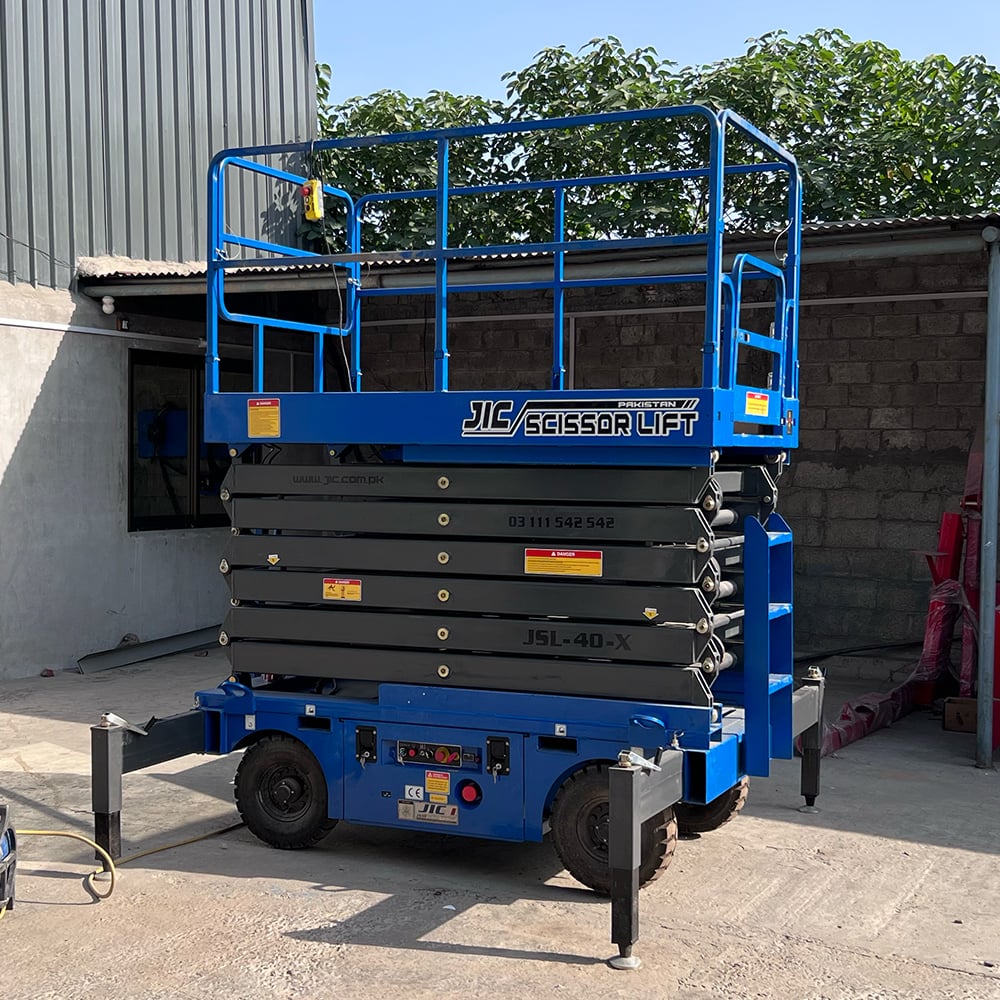

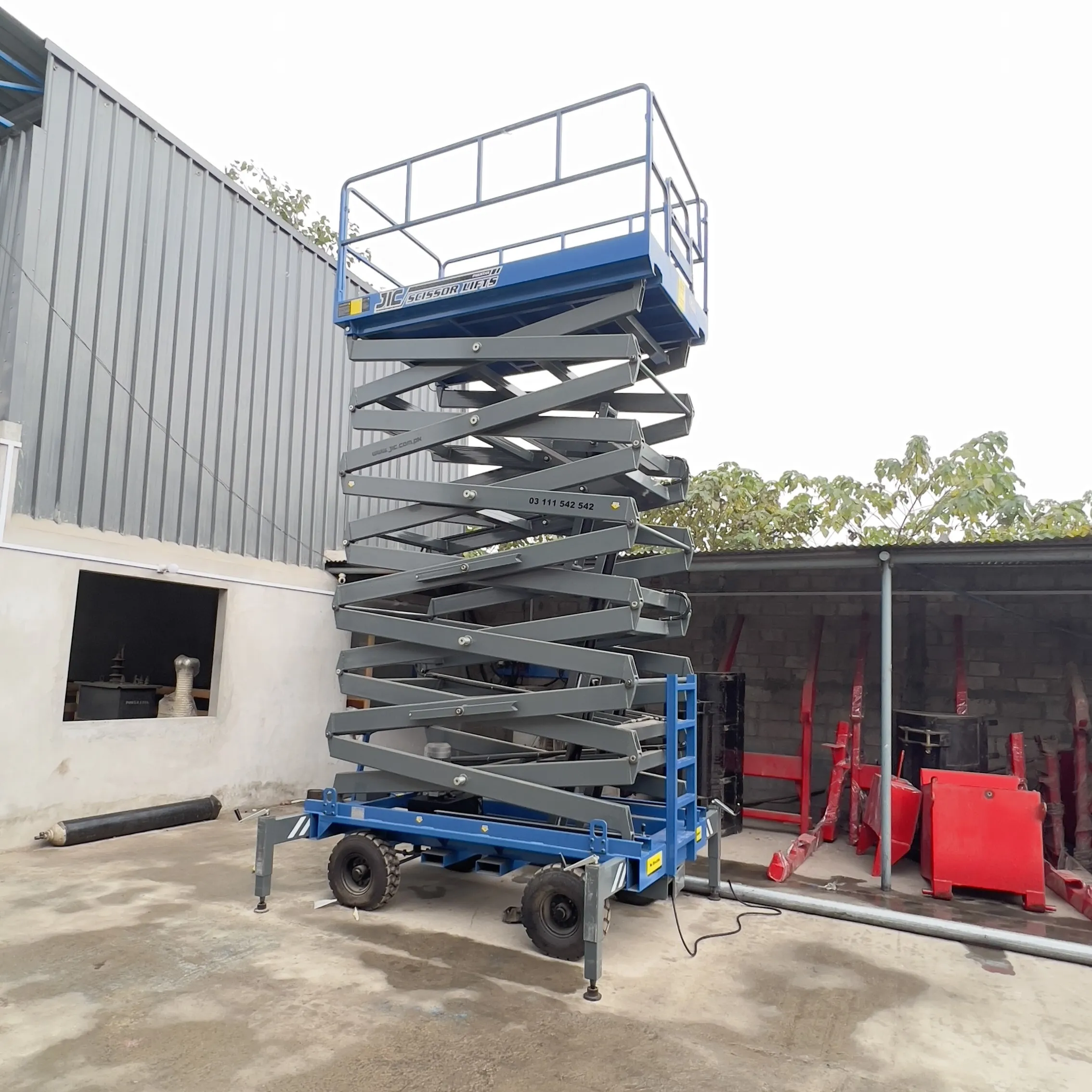

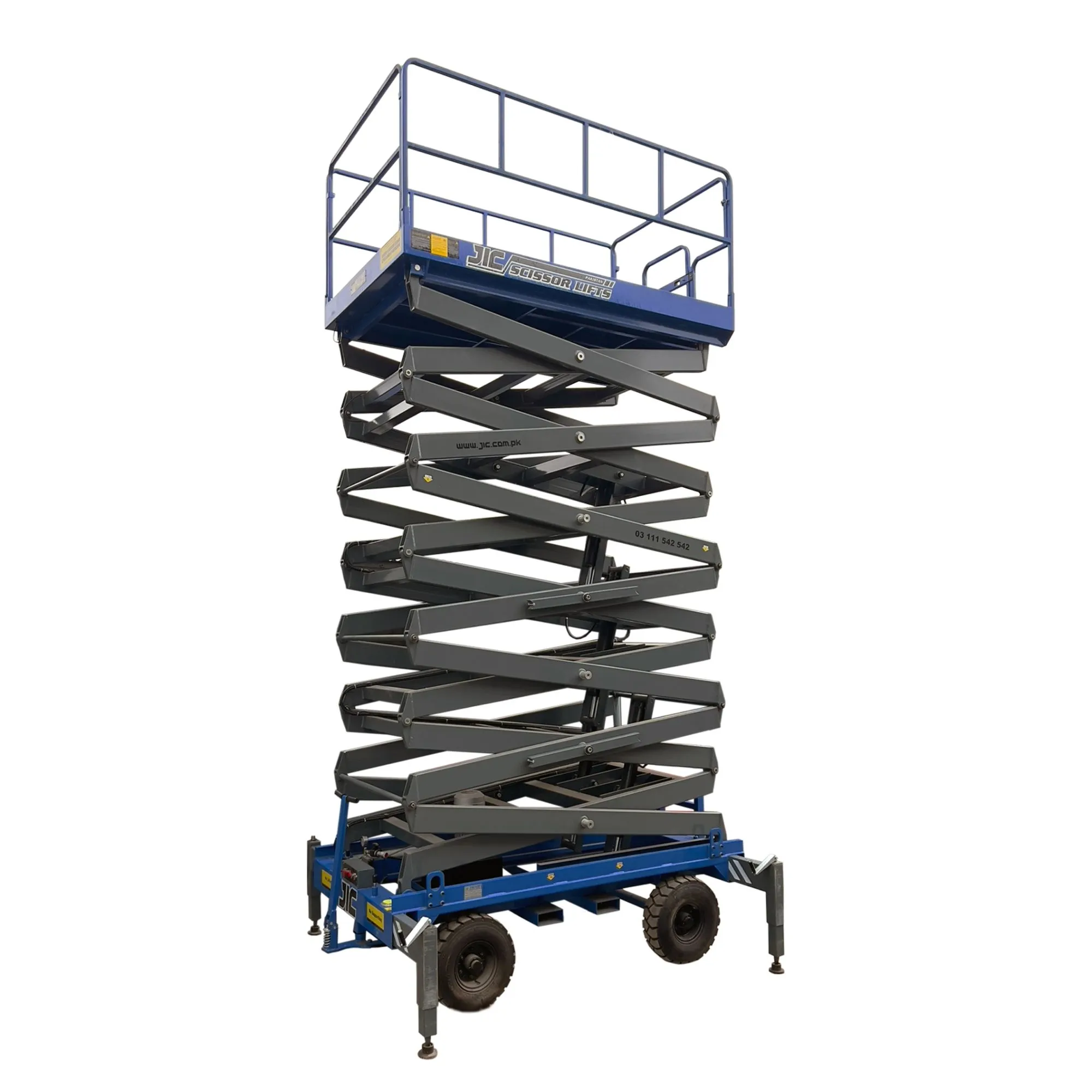

JIC Hydraulic Scissor Lift
The lifting platform has good movability and convenient to transfer the site. JIC Scissor Lifts are wide used for indoor and outdoor operation and storage.
JIC Scissor Lift
Technical Specification of Hydraulic Scissor Lift
Frequent Ask Question about JIC Scissor Lift
A scissor lift is a mechanical lifting platform that moves vertically using cross-shaped scissor arms. It is used to safely lift workers, tools, and materials to elevated work areas.
JIC Scissor lifts are widely used in construction, warehouses, maintenance work, factories, shopping malls, and renovation services.
JIC scissor lifts are manufactured with working heights ranging from 20 feet to 50 feet, depending on the model and application. Customer can order a 20 Feet Scissor Lift, 25 Feet Scissor Lift , 30 Feet Scissor Lift, 35 Feet Scissor Lift, 40 feet scissor lift, 45 feet scissor lift and 50 feet Scissor lift.
JIC Scissor lift have lifting capacity typically ranges between 250 kg to 500 kg based on the design and model.
JIC Scissor Lift – AC Powered
Manufactured by JIC for locations where continuous electric supply is available. Ideal for indoor workshops and factories. The AC motor provides strong lifting power with minimal maintenance.JIC Scissor Lift – DC Battery Powered
Manufactured by JIC for sites where AC power is not available. Operates completely on heavy-duty batteries, suitable for outdoor and mobile applications. Provides silent and smooth lifting performance.JIC Scissor Lift – AC/DC Dual-Power Combination
JIC manufactures dual-power scissor lifts that can run on both AC supply and battery power. Perfect for customers who need flexibility to use the lift in multiple environments.
Yes, JIC Scissor Lifts are completely safe to use.
They are designed and manufactured according to standards by Mobile Elevating Work Platforms (MEWPs).
JIC ensures safety through:
- safety relief valve
- foldable guard rails Optional
- emergency lowering system
- high‑quality hydraulic cylinders
- 4 threaded outriggers.
Yes, All JIC Scissor Lift models are equipped with dual control panels
One control panel is located on the platform(cage), and the second is installed at the base(chassis), ensuring safe, easy, and convenient operation from both positions.
Manual tow models come with 2 axles and 4 tires. Self-propelled models are available on request.
DC lifts include a built‑in smart charger that charges when plugged into a 220V AC outlet
JSL-30-A Model Breakdown is
JSL is JIC Scissor Lift Model
30 is maximum height of model
A means Ac Operation
D means DC Operation
Z means AC / DC Operation
Yes, we can customize height, platform size, power type, and color
Maintenance includes checking hydraulic oil, lubricating bushes, battery inspection, tire check, and testing emergency functions.
Yes, all units come with standard warranty and extended options.
You can contact us via phone, WhatsApp, or website form for pricing and technical support.
The price of a JIC Scissor Lift depends on the model, working height, lifting capacity, power type (AC, DC, or AC/DC), and any additional custom features you require.
Since we also manufacture according to the customer’s specifications, the final price is prepared after understanding your exact requirements.
You can share your desired height and specifications, and we will provide a detailed quotation.
JIC scissor lifts are manufactured at Javaid Industrial Company, Jinnah Interchange, G.T. Road, Gujranwala – Pakistan.
No, JIC scissor lifts are only sold. We manufacture them according to customer requirements.
Yes, JIC imports scissor lifts in addition to manufacturing them locally according to customer requirements.
JIC scissor lifts, are made to order however we have different height JIC scissor lifts Imported in Stock subjected to availability.
Additional information
| Travelling |
Manual Tow-type |
|---|---|
| Height | , , , , , |
| Lifting Capacity | , , , |
| Controls | |
| Stabilizers | , , |
| Power | , , |
